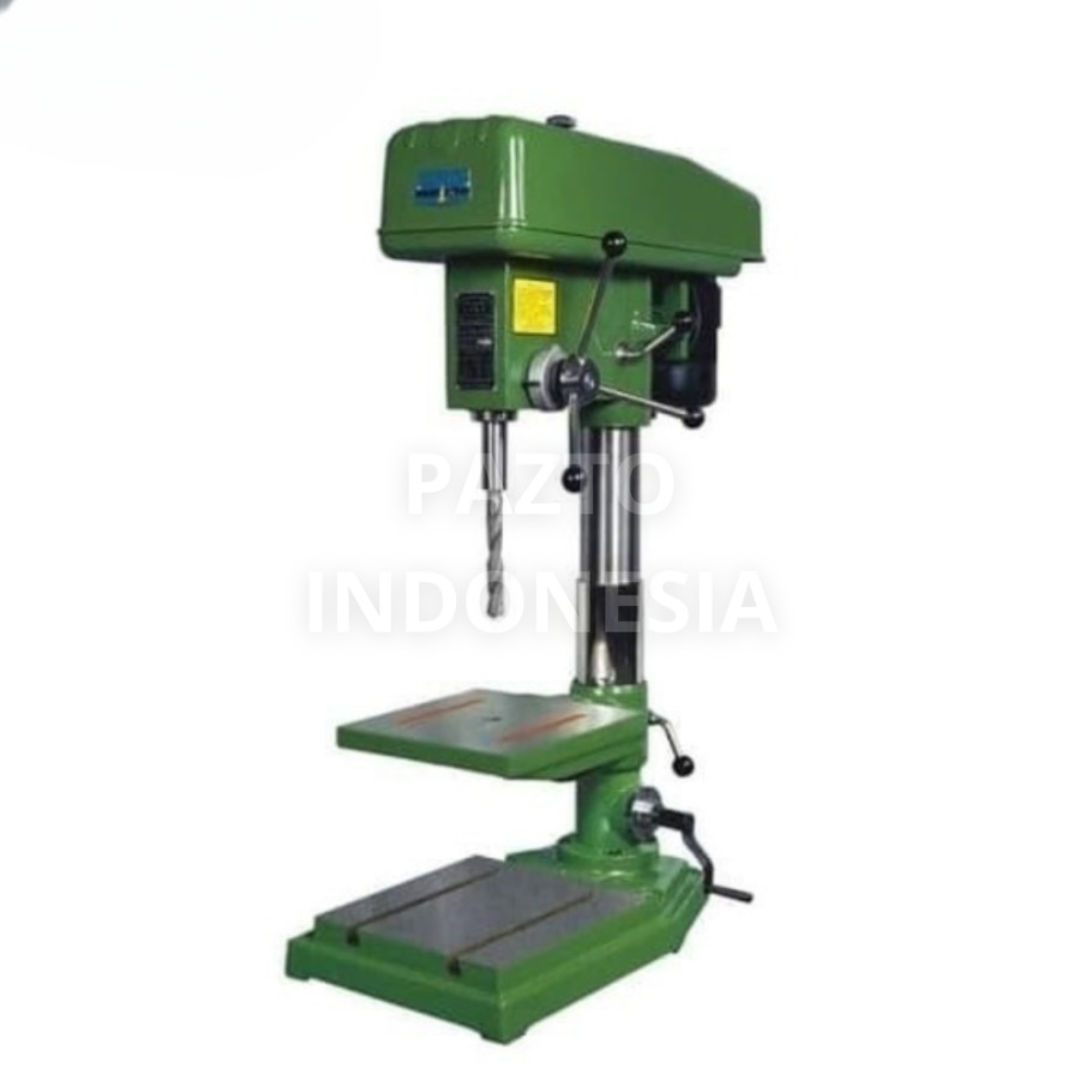

Westlake Mesin Bor Duduk 25 mm Bench Drilling Machine ZQ 4125 I ZQ4125 ORI

SPESIFIKASI :
MESIN BOR : ZQ4125
PHASE : 1 & 3 PHASE
DRILLING CAPACITY :25/31mm (Chuck 16mm)
DIAMETER OF COLUMN : 85mm
SPINDLE TRAVEL : 110mm
DISTANCE SPINDLE AXIS TO CLOUMN SURFACE : 200mm
DISTANCE SPINDLE NOSE TO WOKRTABLE : 485mm
DISTANCE SPINDLE NOSE TO BASE : 670mm
SPINDLE TAPER : MT3
SPINDLE SPEED RANGE : 200-2260rpm/150-2270rpm
SPINDLE SPEED : 9/12
DIMENSION OF WORKTABLE SURFACE : 280X280 or 360mm
DIMENSION OF BASE : 300 X 300mm
OVERALL HEIGHT : 1109mm
MOTOR POWER : 550/750W

Chuck Drill bawaan mesin 16mm

Tidak Perlu Khawatir Pengiriman, Paket Aman Sudah Berpengalaman !
